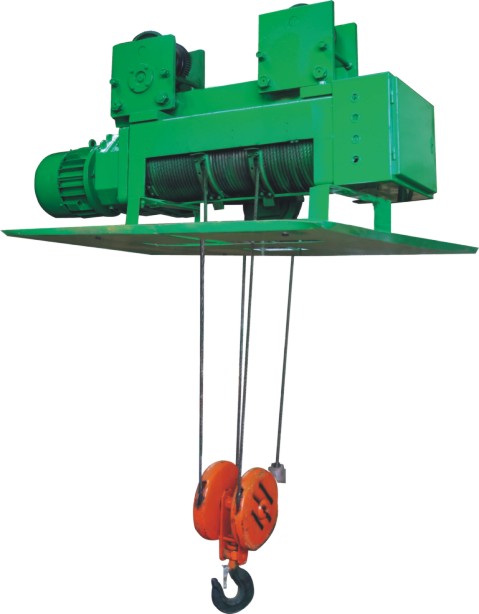

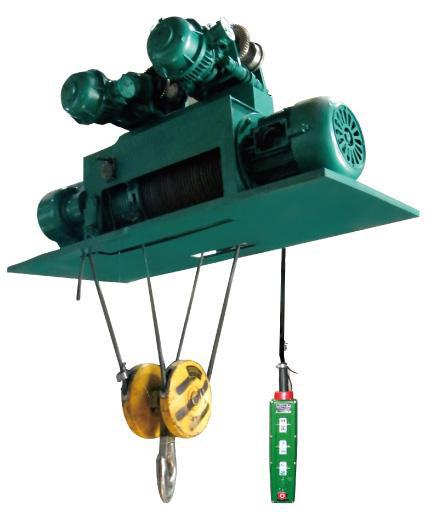

Product information of wire rope electric metallurgy hoist
Wire rope electric metallurgy hoist which can be mounted on single beam,bridge,gantry and jib cranes,with slight modification,it can also be used as a winch. It is widely used in factories,mines,harbours,warehouses,cargo storage areas and shops,essential in raising working efficiency and improving working conditions.
Electric hoist has only one normal speed,which can satisfy normal application,Model MD electric hoist provides two speeds;normal speed and low speed. At a low speed,it can do precise loading and unloading,mounding of sand box,maintenance of machine tools,etc. Thus model MD electric hoist is more widely used than Model MD
To meet the needs of lifting heavier cargo,our factory also manufacturers WH20,WH32t electric hoist.
Technical parameters of wire rope electric metallurgy hoist:
Item | specification | |
capacity | t | 0.25-32 or as required |
Lifting height | m | 3-30 or as required |
Lifting speed | m/min | 0.35/3.5,0.7/7,7,0.8/8 or as required |
Traveling speed | m/min | 20/30 or as required |
Wire rope | type | 6x37+1 |
dia. | 3.6/4.7/7.7/11/13/15.5/17.5/22.5/22.5 | |
Working system | FC=25%(intermediate) | |
Power source | 380V50HZ,3-PHASE AC or as required | |

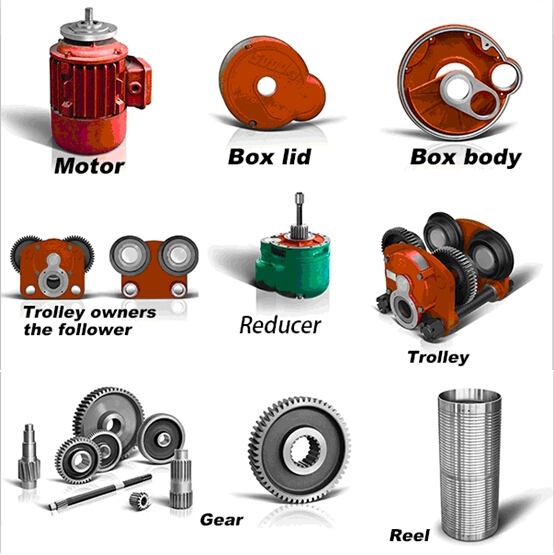

Key parts of wire rope electric metallurgy hoist:
Electric parts:To keep the crane power-good,brand of electric parts such as:Chint,Siemens,
Schneider,
Motors:China top brand,is strictly chosen according to the application and working environment,
Brakes:Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
Hook:Normal hook and swing hook for your various application.
Painting:The color as your required,two coats of primer before assembly&two coats of synthetic enamel after testing.
Specifications of wire rope electric metallurgy hoist
1.lifing capacity:0.5~10ton or customized design;
2.Lifting height:3~20m or customzied design;
3.Lifting speed: single or double speed 0.8-8, 0.7-7m/min or customized design;
4.Power supply:220v,360v,440V,50/60HZ,three phase or customized design.
5. Working temperature: -10 – 60℃
