Fixed wall mounted slewing jib crane

Fixed wall mounted slewing jib crane of Product introduction

1.Fixed wall mounted slewing jib crane offer a lower cost design with the greatest potential clearance under the boom.

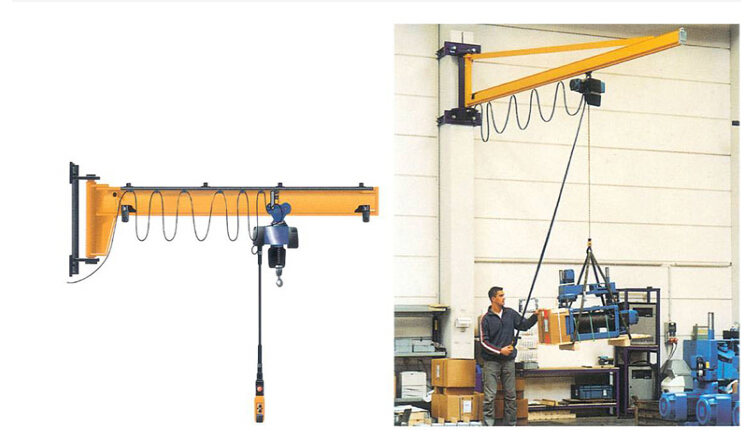

2.Jib crane has a horizontal jib supporting a movable hoist, is fixed to a wall or to a floor-mounted pillar. The jib may swing through an arc, to give additional lateral movement, or be fixed.

3.This crane can move loads around corners, reach into machines or exit, and swing under obstructions.

4.This crane is perfect in applications that require an operator to rotate the jib in close to the pivot point.

5.Capacities: Wall mounted is 0.125 ~1 Ton, With spans up to 5 meters.

6.180 degree rotation for wall mounted

7.Suited for applications where perating around obstacles or swinging under obstructions is necessary

8.Manual swing and motorized swing





Fixed wall mounted slewing jib crane of Technical Parameter:

item

specifications

capacity

t

0.5

1

2

3

5

10

16

20

Arm length

m

1.2-20

Lifting height

m

1-15

Lifting speed

m/min

3.5/7/8

Travelingspeed

m/min

20/30

Rotate speed

r/min

0.7

Rotate angle

degree

360°

Wire rope

mm

Ø4.7

Ø7.7

Ø11

Ø13

Ø15.5

Ø15.5

Ø17.5

Ø22.5

Power source


3-phase, 380v50Hz OR as required



Fixed wall mounted slewing jib crane of Advantages:

(1)Simple installation Wall mounted jib cranes can be mounted on wall, no special floor space required.

(2)Shorten loading time, improve work efficiency With a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time.

(3)Wall Mounted Jib Crane is Easy handing, lighten laboring work .It can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handing heavy or unwieldy parts is considerably reduced.

(4)High quality with good price









Fixed wall mounted slewing jib crane of Application

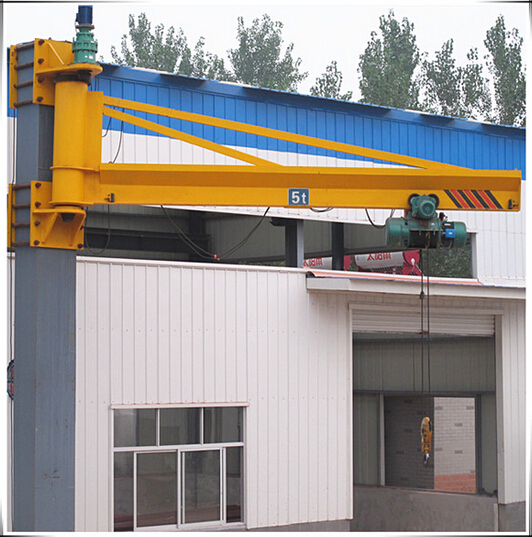

Wall Mounted Jib Crane is suitable to work in the dock, warehouse, workshop etc fixed working conditions. It can work within the 360 degrees to lift and materials handling.






Fixed wall mounted slewing jib crane of Working Envirenment:

1). Power source is three-phase alternating current, rated frequency is50HZ,rated voltage is 380v.

2). the altitude height of site is ought to be less than 2000m

3). Flammable explosive and corrosive gas are forbidden in the work environment

4). The crane is forbid to lift molten metal, explosives, poison and corrosives
