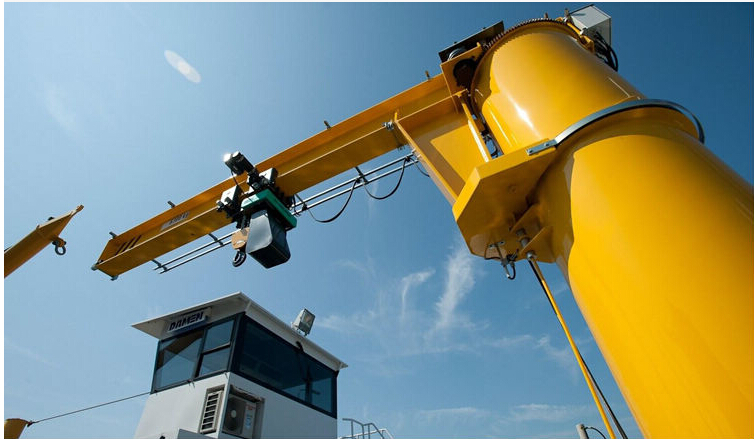

Fixed Column cantilever jib crane of introduction
Fixed Column cantilever jib crane is reasonable and safe in operation. It has wide 360 degree operation scope which is suitable for machining workshop, assembling workshop, foundry, heat treatment plant, transportation, loading and unloading, spare parts to flip homework .Also,it’s with remote control device,so workman can operate from a long distance, it’s a safe and ideal modern rigger materials and equipment.

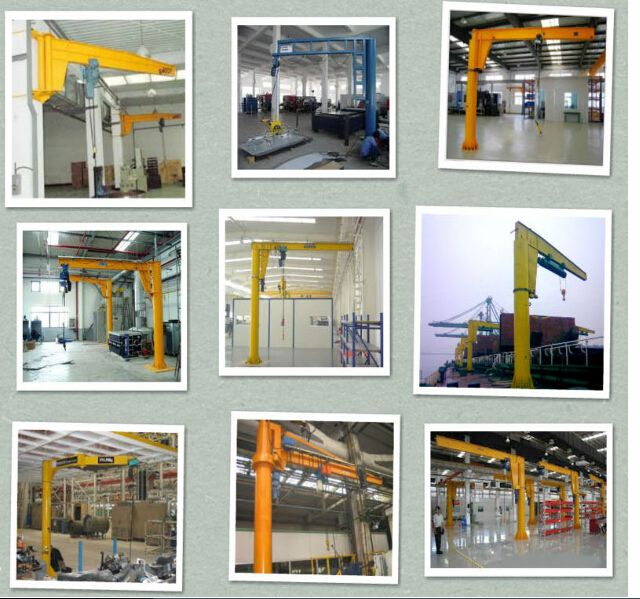

Column cantilever jib crane is a small and medium-speed lifting equipment developed recently. It has characteristics of unique structure,safe and reliable operation,high efficiency,energy-saving,effort-saving,and flexibility. It can be operated under three dimensional environment. It is superior in the cases of short distance,concentrated lifting. It is widely used at various sites for various trades.
Fixed Column cantilever jib crane of Features:
These offer 180 Degree Rotation and they mount easily to any substantial structural steel building column, at any desired height.
1. Lifting capacity: 0.5-5t
2. Valid radius:1.5-5.5m
3. lifting height:1.5-15m
4. Slewing speed: 20 r/min
5. Hoisting speed: 8/0.8m/min
6. hoist travel speed: 20 m/min
7. rotation methods: motor driven or by hand.
Fixed Column cantilever jib crane of Structure and composition :

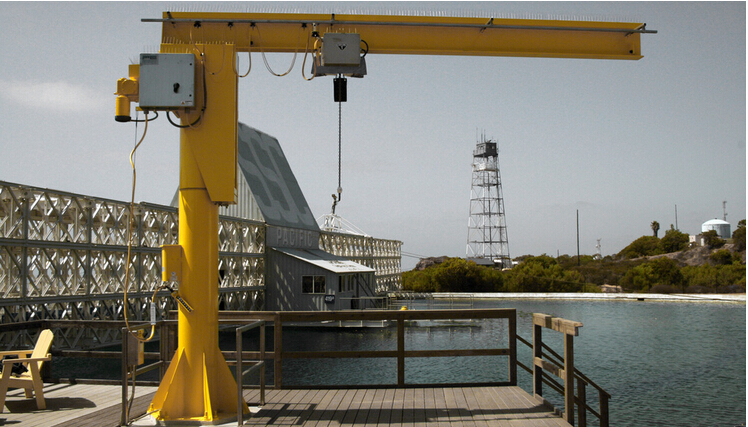

The bottom of the vertical column is fixed on the concrete base.
revolving arm
Horizontally Rotation of the revolving arm:
a,Manual, depend on the operator use the human force to push the impending working with self prepared rope etc device.
b,electrical rotating shaft
It has two types according to whether it is on the outside or the inside of the vertical shaft.
Hoist
The hoist travels with the right and left straight line on the H beam. It is used to lift heavy materials.
