Hydraulic propelled scissor lift platform of Overview
Hydraulic propelled scissor lift platform is a versatile lifting equipment,widely used in factories,docks,construction,transportation,sports,equipment maintenance and other high-altitude operations and maintenance. They are manual kinds of lift platform,can be roughly divided into:four-wheel mobile lifting platform,push-type lift platform,car load lifting platform,fixed platform lift,scissor lift platform and so on.
(1)Hydraulic propelled scissor lift platform use hydraulic lifting system,has automatic walking function, can be work in different condition, do not need external power supply, do not need artificial traction.
(2)Mobile flexible, convenient to operate, lift freely, only one people can finish forward, backward,steering,fast and slow walk.
(3)Scissor type body structure,platform can be made to telescopic type, also can add alarm system.
Hydraulic propelled scissor lift platform of parameter
model | Table size(m) | Overall size(m) | Lifting height(m) | Capacity(kg) | Weight(kg) | Power supply |
SHJ-8 | 1.15X0.65 | 1.15X0.90X1.90 | 8 | 200 | 430 | 220V/1.5Kw |
SHJ-10 | 1.30X0.65 | 1.15X0.90X2.10 | 10 | 200 | 560 | 220V/1.5Kw |
SHJ-12 | 1.45X0.65 | 1.15X0.90X2.35 | 12 | 200 | 580 | 220V/1.5Kw |
SHJ-14 | 1.55X0.65 | 1.60X1.00X2.60 | 14 | 200 | 620 | 220V/1.5Kw |
SHJ-16 | 1.55X0.65 | 1.80X1.00X3.00 | 16 | 200 | 1300 | 220V/1.5Kw |
SHJ-18 | 1.55X0.65 | 1.80X1.00X3.10 | 18 | 200 | 1500 | 220V/1.5Kw |

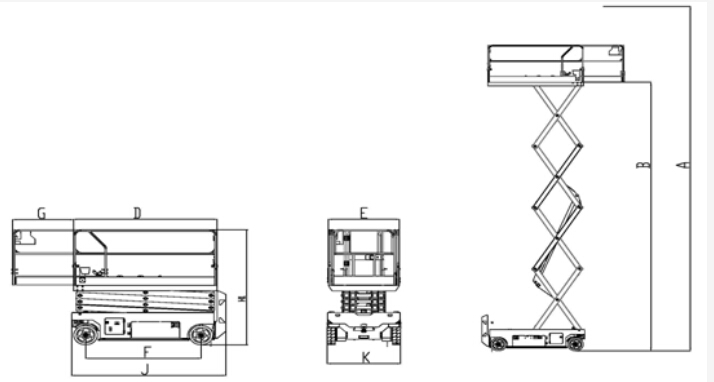

Hydraulic propelled scissor lift platform of drafting
Hydraulic propelled scissor lift platform of Advantage
(1).Excellent Mobility
Compact body can easily pass through single and double channel doorway,using non-making solid tire.
(2).Special locations
Feature of low noise is perfectly suitable for the noise-sensitive environment,such as office buildings,shopping malls,hotels,schools,etc.
(3). Compact and flexible
Hydraulic propelled scissor lift platform are equipped with zero inside turning radius capacity,can be easily and flexibly operated in crowed working conditions such as construction site,elevator,and narrow corridor,lift-up,lift-down,turning,forward and backward movements can be easy operated by one person.
