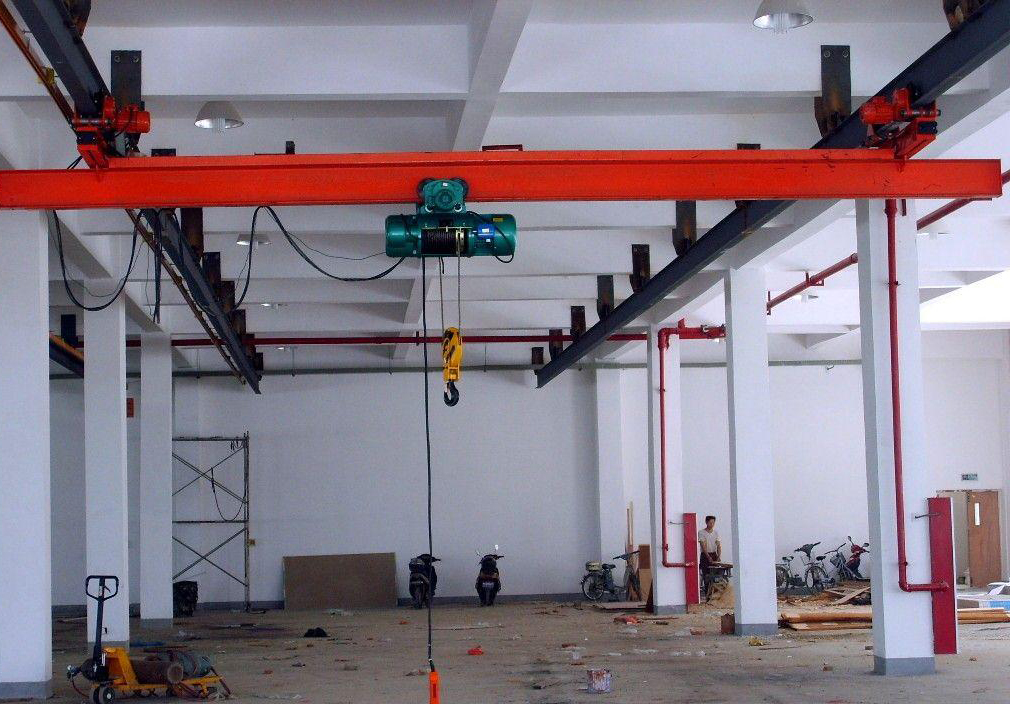

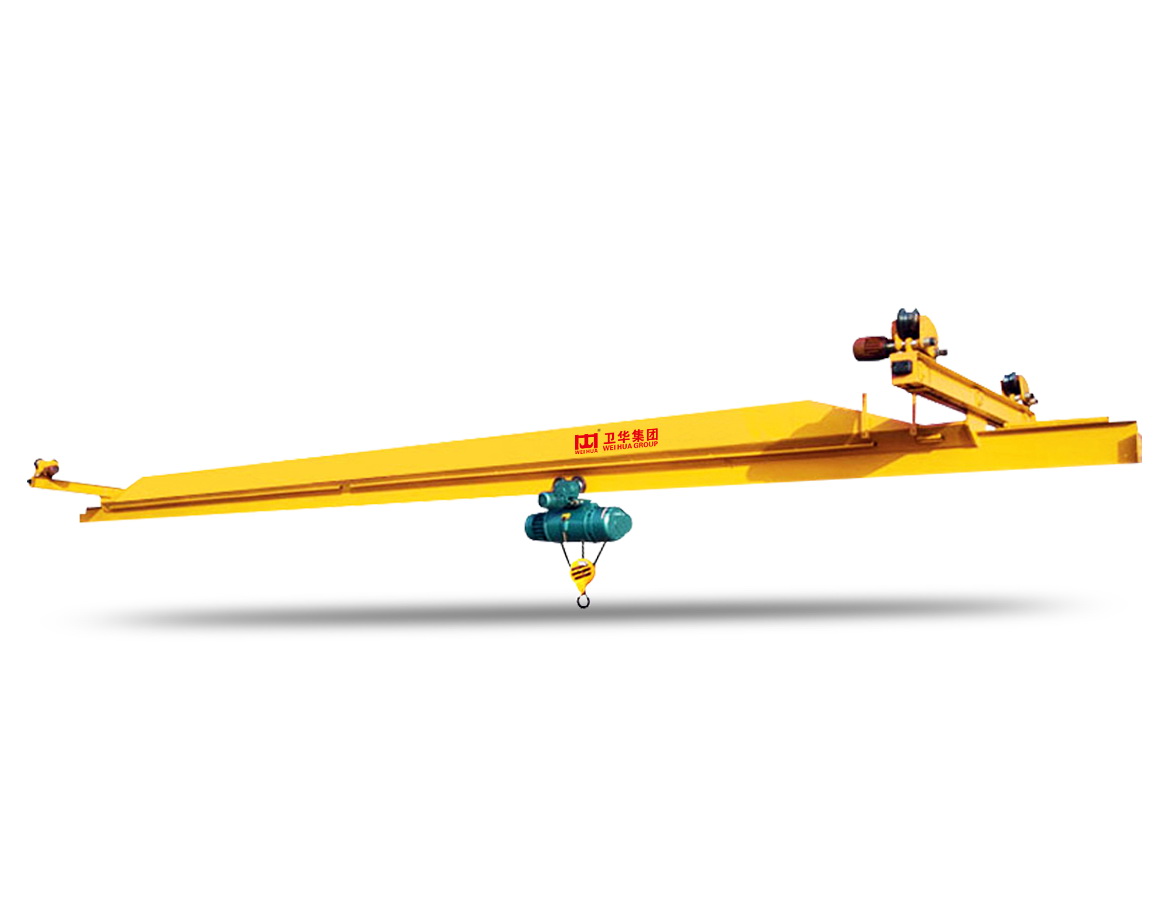

Single girder overhead crane of introduction:
LDP model electric single girder overhead crane belongs to very low clearance light duty lifting equipment, electric hoist is at one side of main girder, so can increase service space of hook and reduce the cost. With advantages of big trolley tread, smooth traveling, tight structure,strong rigidity, delicate operation, low noise, safety and reliability and beautiful exterior, it is widely used in the situation that clearance height of workshop is low and the operating ambient temperature is -25℃ to 40℃.
Single girder overhead crane of feature:
LDP model electric single girder overhead crane is designed and produced according to GB/T3811-2008, JB/T 1306-2008 standard and used with model CD,MD. It is a light duty crane with rated load of 3 ton to 10 ton. The span is 7.5m-22.5m. Working grade is A3-A4 and lifting height is 6-12m. The main operating method is ground control (ground control, remote control, ground control +remote control). If the span and lifting height is out of the range that stylebook lists, we can do non-standard design according to user requirement.
