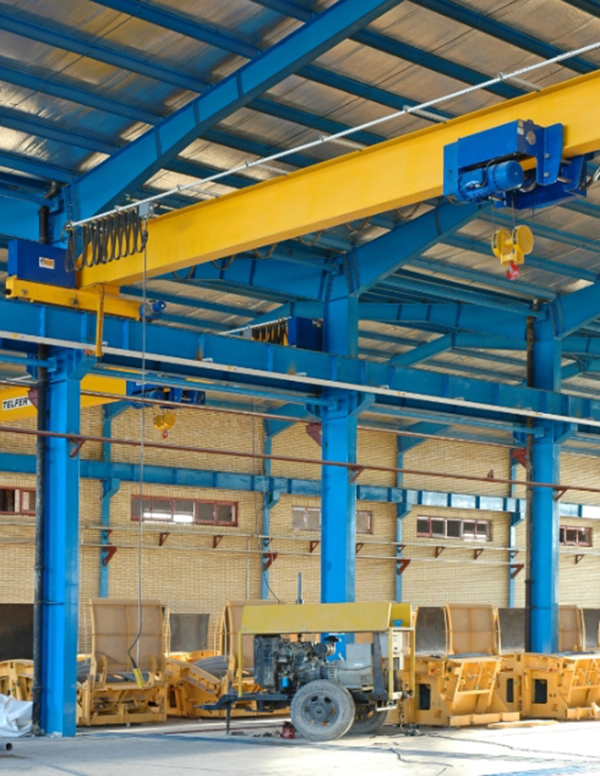

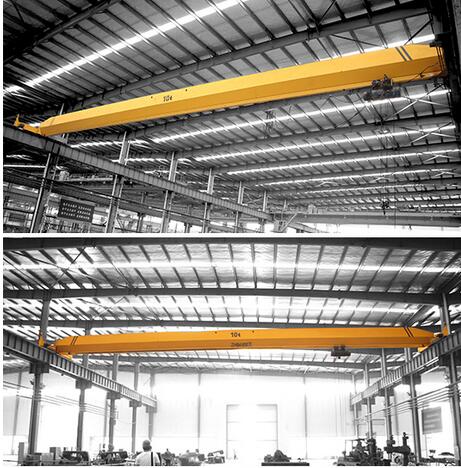

Metallurgy electric single girder overhead crane of introduction:
LDY metallurgy electric single girder crane is mainly used for lifting molten metal and is applied to foundry industry. Its configured lifting mechanism is model YH2 metallurgy electric hoist, lifting capacity<=10t, Dealing with special thermal baffle felt for main girder, working environment temperature -20--+60℃, relative humidity is <=50% in 40C. design and manufacture of crane meet the requirements of AQSIQ Doc #(2007) 375. Working grade id not more than A6 and lifting is 9m-20m. And used with YH metallurgy electric hoist,it is a light duty crane with rated load of 2 ton to 10 ton. The span is 7.5m to 28.5m. It can also be used for lifting fusion non-metallic material or hot solid metal.
Metallurgy electric single Girder overhead crane of advantages:
1, Suitable to work in High temperature environment;
2.Double Brakes (with Safety Brake), Double Hoisting Limit Switches, overload limit switch.
3,High temperature heat protection system.
