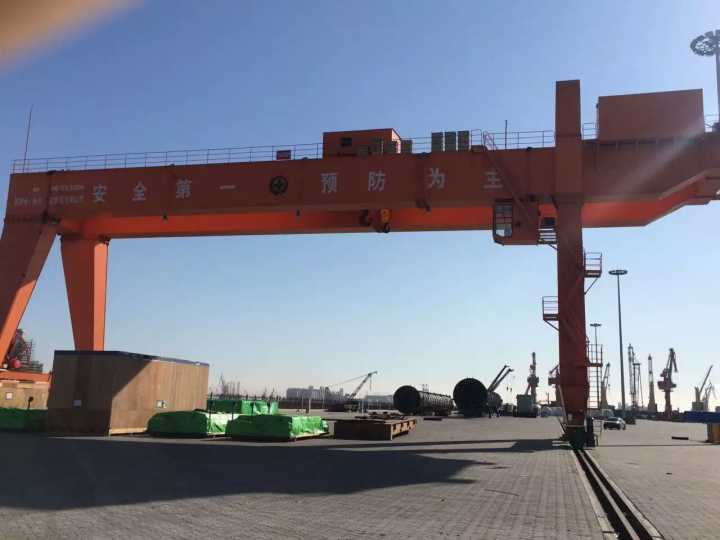

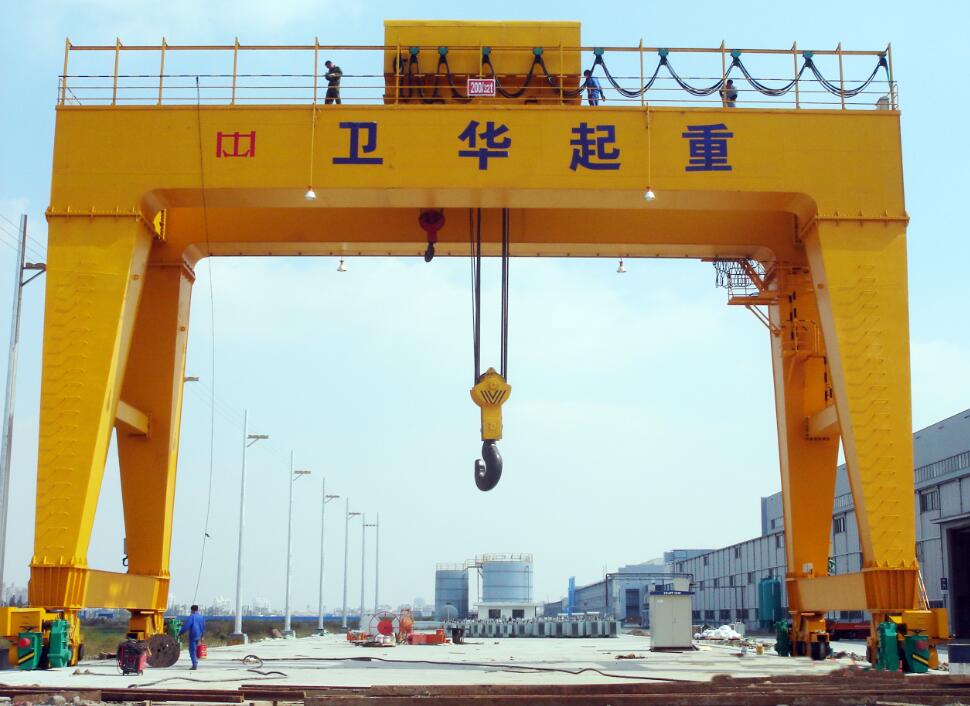

A type double girder gantry crane of introduction
A type double girder gantry crane composed of gantry, crane crab, trolley traveling mechanism, cab and electric control system, The trolley can move horizontally on a pair of rails on the beam. Cabin used for operating, with seats inside.
Floor adopts insulation pads and toughened glass for windows; extinguisher and fan are equipped. Other accessory equipment like aircondition, buzzer, interphone and etc. can beconfigured according to our client’s request.
A type double girder gantry crane of Specification:
Lifting capacity up to 500ton.
span is 12m to 35m.
Lifting height up to 12m.
Applied outside warehouse or railway sideways.
This kind of crane is composed of bridge, support legs, crane traveling organ, winch trolley, electric equipment, strong lifting winch.
Crane traveling mechanisms are operated in the driver cabin or remote control.
Power is supplied by cable or slide wire.
