First, product overview
1. The crane clamp is parallel to the main beam.
2. The crane is used for loading, unloading and transporting steel slabs, profiles and other materials in the fixed span of steel works, shipyards, ports, yards and warehouses.
3. This crane is especially suitable for lifting slabs of different specifications. It can be equipped with different clamps to meet the lifting requirements according to the specifications (thickness, length, number of sheets, etc.) and weight of the materials to be hoisted.
4, according to customer requirements can provide: speed control (1:10 or greater) of each institution, overload and alarm, remote control, PLC control and fault detection, display system.
5. The lifting adopts the double-structure four-brake structure, and the motor has an over-speed switch to ensure the smooth, safe and reliable lifting.
6. The main electronic control components are arranged inside the main beam, which prolongs the life of the electrical components and reduces electrical control faults.

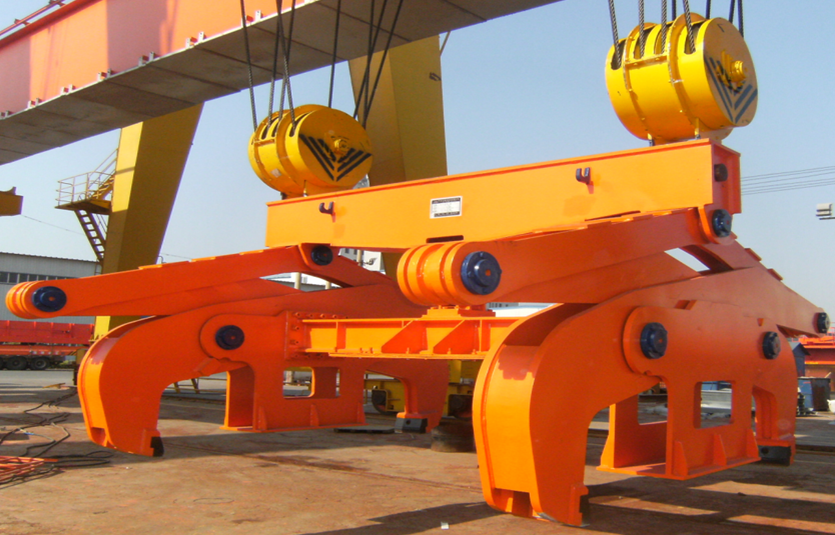

7. The double hanging point clamp spreader is locked by its own weight, and the shutter is positioned to automatically open and close the jaws, which does not consume electric energy and is beneficial to environmental protection. The utility model has the advantages of simple structure, convenient manufacture, low price, small size and light weight.

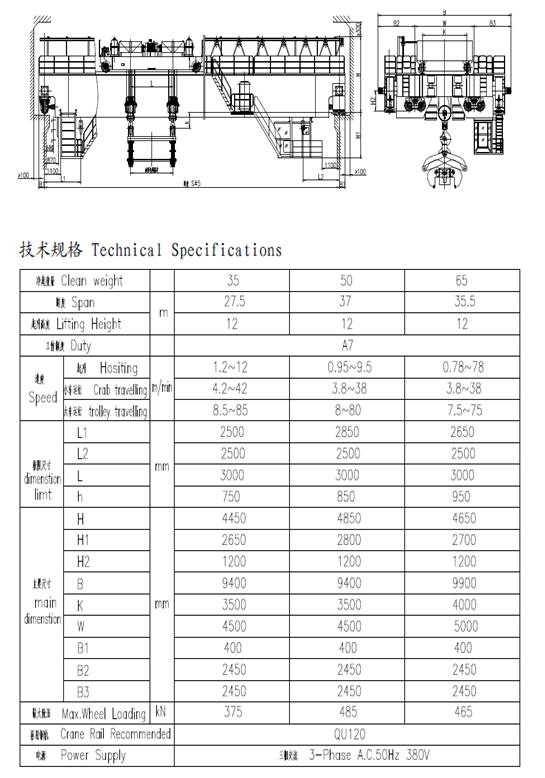

Second,Product outline and technical specifications（35t、50t、65t）
