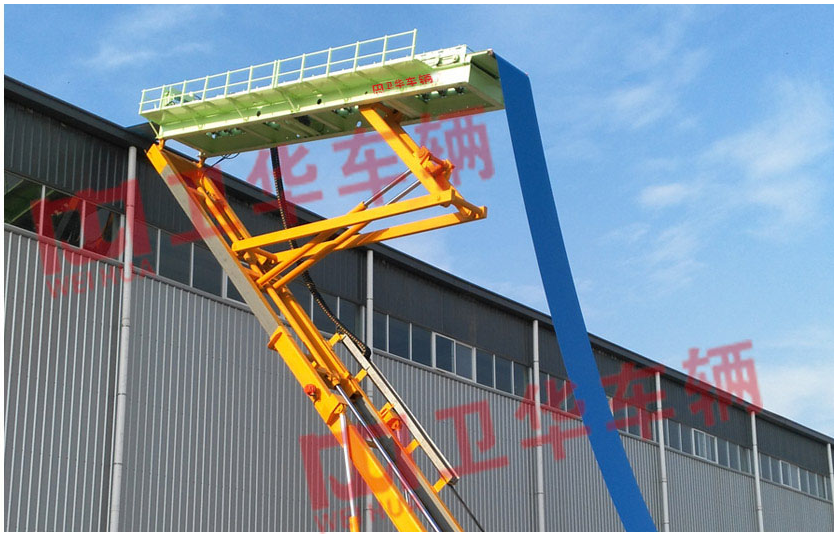

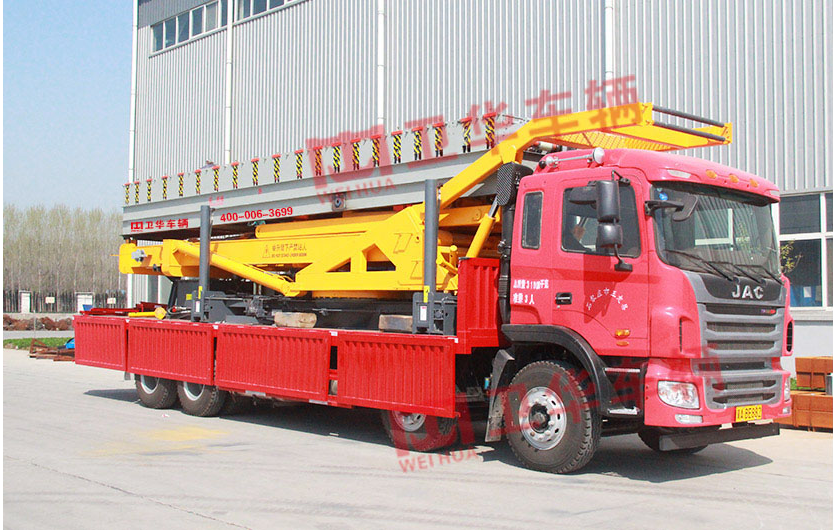

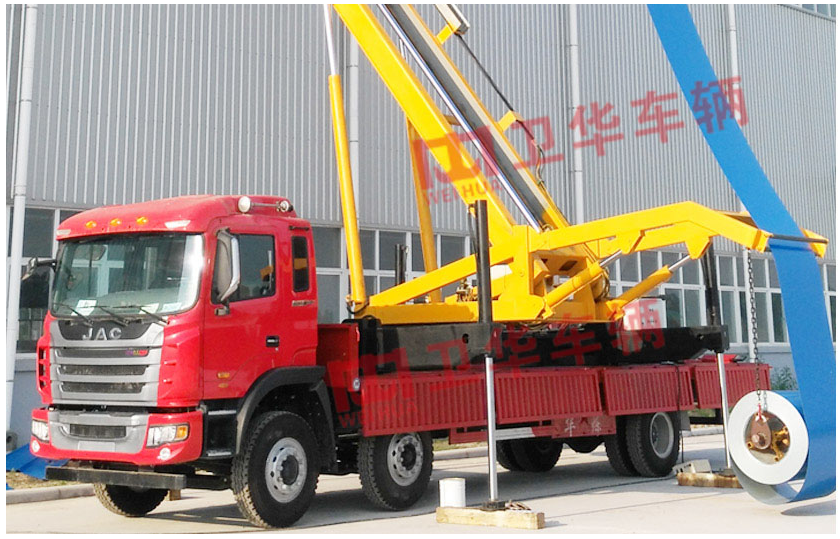

High altitude tile making car

Product Description:

On the basis of the general chassis, the system of lifting and electro-hydraulic control is installed for the suppression and transportation of color steel tile in the construction of steel structure workshops. the unwinding, tiling, lifting and conveying are integrated. It is convenient and efficient to use the construction site power supply.





Product Feature:

1. Realize long-distance transportation and site transfer, which is convenient and flexible.

2. Realize the integration of ground feeding and high-altitude tile discharge, with high efficiency and energy saving.

3. Direct use of construction power supply to reduce operation cost.

4. Full hydraulic drive, simple structure, safe and reliable, convenient maintenance.

5. The whole vehicle adopts PLC control, which can realize panel and remote control.

6. To achieve a variety of types of tile exchange, a wide range of applications




   Category

               Item

UnitSpecification






Performance parameter

color steel tile type

Angle820/760/470/788

maximum exit pallet jewel height

m16.5

Maximum lifting height

kg8000

Color plate specification

widthmm1000/600
thicknessmm0.3-1

exit pallet jewel speed

m/min10-18

outrigger span

m4.8*5.3

Lifting oil cylinder specification

Trolley traveling mechanism

140

Stretch mechanis

125

Balance mechanism

125

Recommend underpan parameter

ModelAxes countContainer size
manufacturers
-

Four axis

9600*2500*800Dongfeng
-

Four axis

9600*2500*550Jianghaui
-

Four axis

9600*2500*600Shanqi
        maximum travel speed
km/h
95

Dimension parameter

 Total length * total width * total heightm12*2.5*4

Quality

total weight
kg33000
Exhaust pollutant emission value and chimney limitv
