In shipbuilding industry,the crane is an effective tool for transporting steel plate,galvanization,and engine assembly . It delivers multiple lifting speeds,great lifting height, improved lifting capacity,and large reach. Via advanced control technique,our crane can operate at different speeds to suit specific industry need.

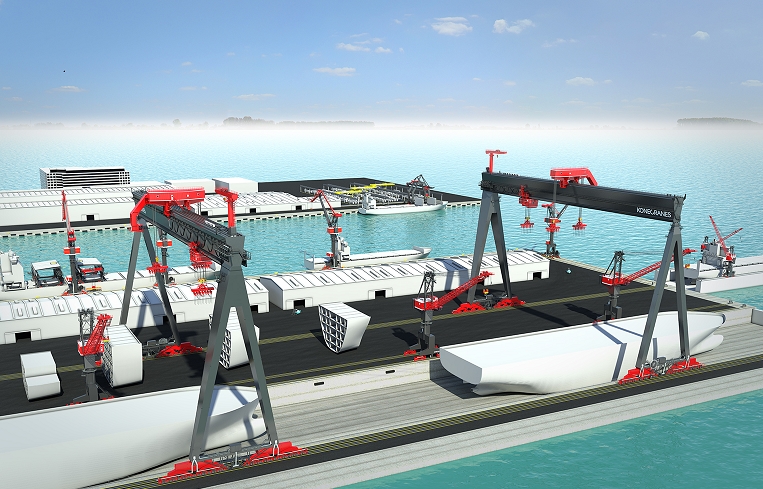

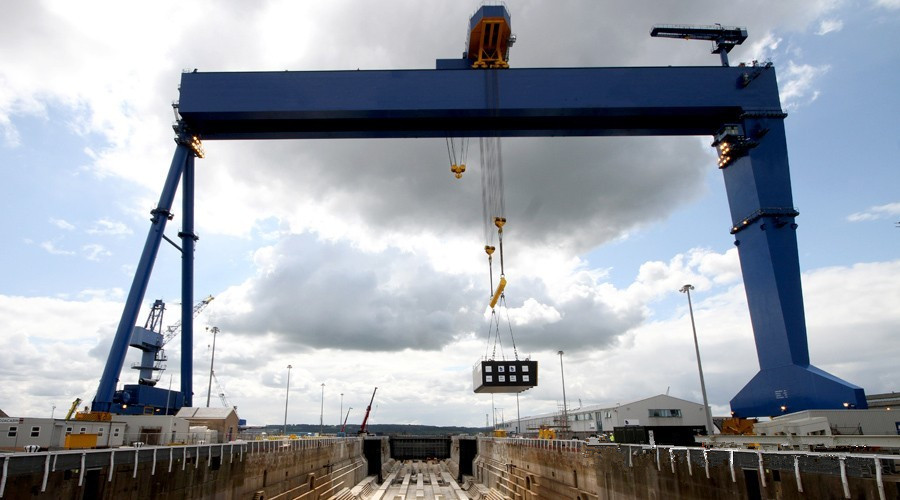

Shipbuilding gantry crane is crane machinery with large hoisting capacity, multiple functions and high efficiency, dedicated to subsection transportation of large ship, butt jointing, and overturning on dock or ship way.


Features of double beam  shipbuilding gantry crane
 1.This crane consists of four main parts:bridge structure,the traveling mechanism,the trolley and the electric equipment.
2.The bridge is welded structure of boxed-type girder, individual drives are adopted for traveling mechanism on each end beam of the crane.
3.Either rigid shapes of steel (angles or tees) or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by the purchaser.
4.Max and Min value of environment temperature, the short of power supply, the voltage and the other data shall accord to the buyer’s demand.
Lifting capacity : 100tons  ~1000tons
Span : 50m ~150m
Working duty:A5
Lifting height : 30m ~100m
Working temperature: -20 ℃ ~40 ℃
