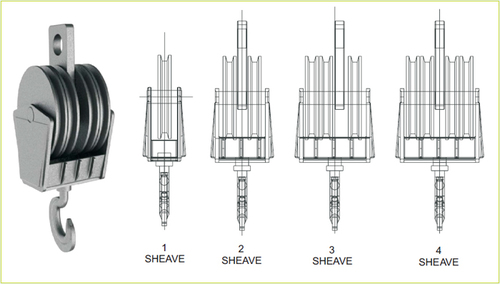

Steel wire rope pulley for crane of introduction
Steel wire rope pulley for crane is an important lifting tool with simple structure, which can be used conveniently. It can change direction of pulley,steel rope and high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. It is widely used in installation in construction. Its standard is from 0.3-320.T and wheels not exceed ten. Our lifting tools include hooks, chain rings, lifting ring,handing beam.You can choose it according to your need.
Diameter of pulley has a direct impact on service life of wire rope
- Wire rope will bent once every time it is through the pulley.
- Repeated bent is one of the most important reasons causing rope damage.
- The smaller diameter of pulley is, the more seriously wire rope bends and the more quickly wire rope damages.
- It requires the diameter of pulley and wire rope keep a reasonable proportion to make wire rope a long service life.
- In order to make wire rope through pulley smoothly, radius of pulley groove bottom should be slightly bigger than radius of wire rope,that is to say, r=(0.53~0.6)d. When diameter of wire rope is bigger.
Safety Inspection of Steel wire rope pulley for crane
- Pulley can rotate agilely with hand-handling in normal working condition, and lateral swinging no more than D0/1000(D0 is the nominal diameter of pulley block).
- Cuttings and dust in the oil-way and oilhole on the shaft must be cleaned. Inspect whether oilhole and oil sink on the spacer bush between the bearings is aligned or not.
- When there are flaws on the pulley, the pulley should be discarded as useless and stopped to use.
- Radial direction of pulley rope groove abrades no more than 30% of rope diameter;
- Pulley groove wall abrades no more than 30% of original wall thickness.
- Defect area in the axle hole is less than 0.25cm square, depth no more than 4mm.
