Manufacturer Direct Sale Container Gantry Crane of introdution :

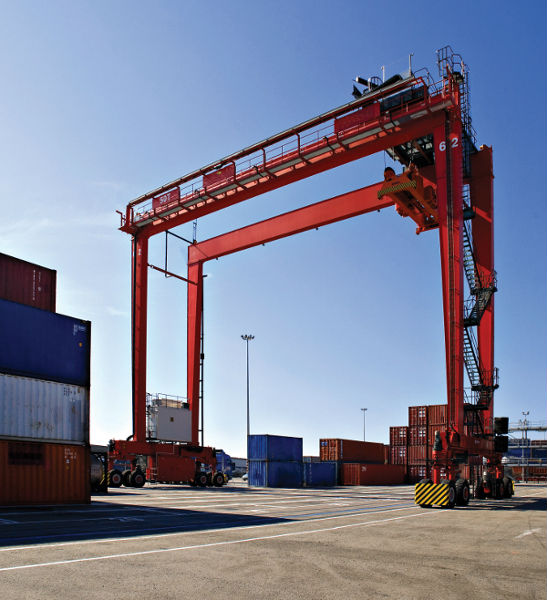

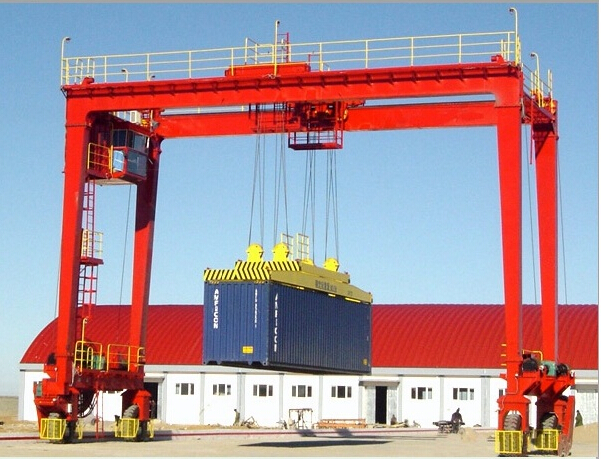

Manufacturer Direct Sale Container Gantry Crane is dedicated machinery, container yard stacking operations are widely used in ports and container freight yard.
2. Using a dedicated container spreader which can lift 20 feet, 40 feet, 45 feet standard containers and hydraulic storage tanks.
3. Crane and trolley traveling machanism adopt the three-in-one reducer, easy for maintenance.
4. Tires can achieve 90 ° turn, change field operations, and with the function of oblique 20 °and 45 °
Manufacturer Direct Sale Container Gantry Crane of Technical specification of :
| Rated load (Under Spreader) | t | 35 | |
| Span | m | 17250 | |
| Lifting height | m/min | 15200 | |
| Speed | Rated Load | 20 | |
| Spreader only | 50 | ||
| Crab travelling | 70 | ||
| Trolley traveling | 120 | ||
| Duty | A7 | ||
| Stack height | 120 | ||
| Tontanter specification | 20’,40’ | ||
| Max. Wheel Loading | KN | 290 | |
power supply | ENGINE-GENERATOR SET | ||
Manufacturer Direct Sale Container Gantry Crane of Common configuration:
1.control methods: Pendant control or remote control cabin control, Or Driver's room.
2. drive units: motor+gear box+brake
3. trolley has hoist type trolley and winch type trolley.
4. Shrouded DSL system for trolley power feeding
5. Electric control box: standard is CHINT electric, Schneider-electric is for choose .
Manufacturer Direct Sale Container Gantry Crane of Features & advantages :
1. Reasonable structure, Top safety
2. Favorable performance, accurate and smooth lifting.
3. Safe and reliable traveling, pricise control and positioning.
4. all round protection, easy operation,
5. Convenient maintenance, high exchangeability for parts and components
6. Main girder: box-shaped girder.
