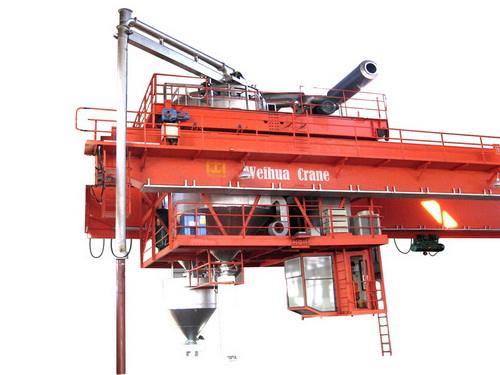

Roasting Multi-Function Crane

The Roasting Multi-Function Crane is a special purpose crane with vacuum material transfer system, dust removal and cooling system and anode carbon block clamp device, and it is a special crane for anode carbon block roasting process line, that is the anode carbon block roasting special operation device.




Function:

1. Charge: Put the unbaked anode block into baking furnace.

2. Padding:Fill the gap between the roaster and the anode block with granular coke in the work bin and cover the top.

3. Material absorption:absorb the filling material in the furnace into the bin.

4. Draw a charge: Draw the burned anode blocks from the roaster and send to the conveyor or named place.

5. Other auxiliary lifting work: Auxiliary material absorption tube installed in the trolley can clean flue and dust; Get the 10t electric hoist in the bridge ready; Implement the maintenance work of the roaster and transportation of the burner.



The whole machine is mainly composed of tool trolley, bridge, crane traveling mechanism, electric hoist, electric control system. The tool trolley is composed of material absorption and unloading system, clamp device, trolley, the trolley traveling mechanism and cabin.







The crane is reliable with good performance, convenient operation, advanced technology and it is widely welcomed by users.
