Motorcycle hydraulic drum brake

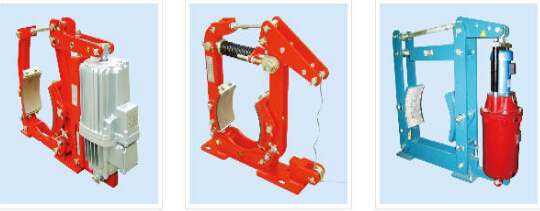

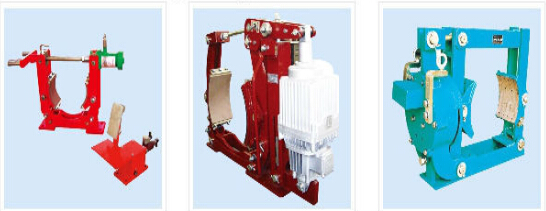

Motorcycle hydraulic drum brake of Introduction
1.Motorcycle hydraulic drum brake is mainly used in mechanical brake, such as hoisting, transportation, metallurgy, mines, ports, construction.
2.Motorcycle hydraulic drum brake series use the Ed pusher as its driving device.
Its advantages: multiple installation, high operating frequency, smooth braking, adjustable braking torque ,friction liner are easy to change, long service life, no noise.
3.The operating frenquency is 2000 times per hour, electrical insulation class is E, protection class is IP65, the products accordance with JB/T7021-1993 and JB/T6406-1992 standards.

Motorcycle hydraulic drum brake of usage Conditions
1.Working temperature: -40 °C -50 °C.
2.The air relative humidity is not more than 90%
3.In no danger of explosion, conductive dust and medium without gas corrosion and damage to the insulation.(Flame-proof products should be discussed separatly)
4.Mainly used for the power with 3phase ,50HZ, 380V (we can provide the products according to the customers requirements which suit for 60HZ or different voltage, so please inform us before you order if there is a special request).
5. Installation altitude in accordance with GB755-2000 standard.
6.The YH-10 Aviation Oil should be instead of pusher’s working solution or the there is a heater attachment when the working temperature is below -20 °C .





Motorcycle hydraulic drum brake of parrameter:

Type

Matching brake

Brake torque N.M

Back torque

D

H1

H

G1

G2

C

D

K

F

YWZ2-100/22

MYT3-22/4

40

0.6-1.6

100

100

366

125

125

144

13

110

75

YWZ2-150/22

MYT3-22/4

140

0.8-1.5

150

140

419

170

170

144

17

150

100

YWZ2-200/40

MYT3-40/4

200

0.6-1.6

200

170

411

195

195

170

17

175

100

YWZ2-300/40

MYT3-40/4

400

0.7-1.4

300

240

575

25

25

170

22

250

130

YWZ2-300/70

MYT3-70/5

630

0.7-.8

300

240

575

275

275

190

22

250

130

YWZ2-400/70

MYT3-70/5

1000

0.8/1.6

400

320

725

350

350

190

22

325

130

YWZ2-400/125

MYT3-125/5

1600

0.8-1.6

400

320

725

350

350

220

22

325

180

YWZ2400/125E

MYT3-125E/5

1600

0.8-1.6

400

320

725

350

350

220

22

380

200

YWZ2-500/125

MYT3-125/5

2500

0.9/1.5

500

400

895

405

405

220

22

380

200

YWZ2-500/125E

MYT3-125E/5

2500

0.9/1.5

500

400

895

405

405

220

22

475

200

YWZ2-600/200

MYT3-200/8

5000

1-2.3

600

475

1080

500

500

220

26

475

220

YWZ2-600/200E

MYT3-200E/8

5000

1-2.3

600

475

1080

500

500

220

26

475

220

YWZ2-700/315

MYT3-315/8

8000

1.2-2.2

700

550

1245

687

687

220

34

540

270

YWZ2-800/315

MYT3-315/8

12500

1.4-2

800

600

1390

687

687

220

34

620

320
