Brief introduction of Crane use steel cable drum

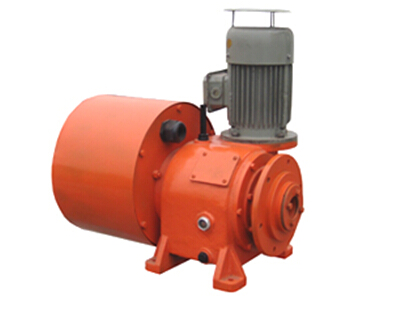

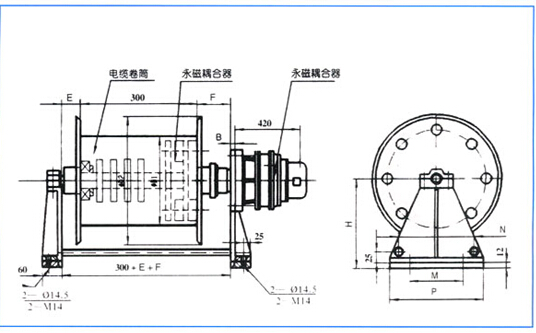

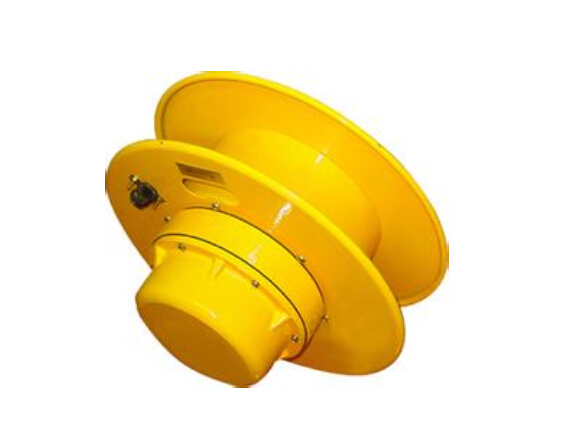

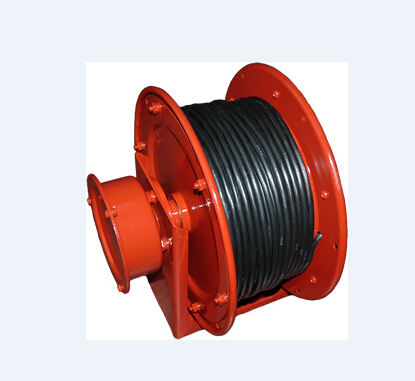

Crane use steel cable drum is the component of wind wire rope in the lifting mechanism. Crane accessories- cable reel is consist of drum shaft, flange type annular gear,drum hub,bearings,bearing pedestal.
When one end of drum is equipped with the switch of rotary type position limitation limiter,it must ensure to make drum shaft and rising limit switch rotate synchronously.
Drum material generally adopts cast iron.For special use,drum can be weld with cast steel or steel plate.
1.crane fitting,coiling block
2.the material is ductile iron or steel
3.used by mining fittings
4.we can produce parts based on clients' samples or drawings and arrange special engineers to inspect the quality of products
5.Reel material generally can be used when using iron need special steel or use steel plate welding manufacturing
Technical parameter of Crane use steel cable drum
No. | Standard | Capacity (t) | Pulley Ratio | Screw Pitch | Lifting Height(m) | Weight(kg) |
1 | φ300×1000 | 3.2 | 2 | 14 | 12 | 264 |
2 | φ300×1500 | 3.2 | 2 | 14 | 18 | 342 |
3 | φ400×1000 | 5 | 3 | 16 | 16 | 334 |
4 | φ400×1500 | 10 | 3 | 16 | 16 | 454 |
5 | φ500×1500 | 16 | 3 | 20 | 10 | 753 |
6 | φ500×1500 | 20 | 4 | 20 | 12 | 753 |
7 | φ650×2000 | 32 | 4 | 24 | 16 | 1500 |
8 | φ800×2000 | 50 | 5 | 28 | 12 | 2534 |
9 | φ800×4000 | 75 | 5 | 32 | 20 | 3390 |
10 | φ1000×4000 | 100 | 6 | 36 | 20 | 6070 |
Specification of Crane use steel cable drum:
1. Capacity:0.5-50t
2. Lifting height:3-50m
3. Used for wire rope drum of hoisting machinery
4. Top quality
