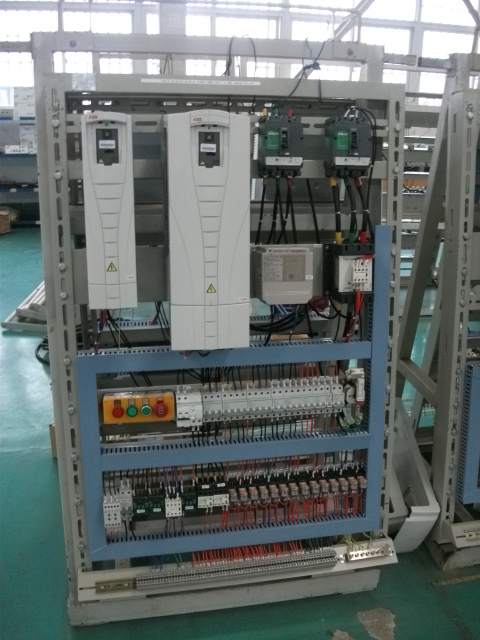

Electrical Control Panel for crane Brief introduction
1.Electrical Control Panel for crane used on control and indication systems for mounting in command boards.
2.Pendant control stations are specifically designed for lifting and handling applications. They enable direct control of motors and can be used for direct motor switching.
3.The electrical control system has been optimized on the base of POTAIN technology. So it has many advantages, such as compact structure, reasonable layout, reliable quality and low maintenance cost etc.
Electrical Control Panel for crane Of Feature
Ambient temperature: -25~70Centigrade,Pollution class: III
Degree of protection: IP65/IP66
Construction :
Body and door material: 1.5mm steel sheet
Flat mounting plate: 2.5mm steel sheet
Finish:
MF standard cycle themosetting epoxy polyester powder coating
Body and door RAL 7032 textured finish
Mounting plate in RAL 2004 smooth finish
Protection degree:
Standards: IP65 to EN60 529 NEMA 4
packing:
Boxes are complete with: 2 zinc passivated rails to be fixed on door
Mounting plate
Gland plate and gasket
With hardware for earth connection and screws to mount all components
Locking system with 3mm double-bar keys

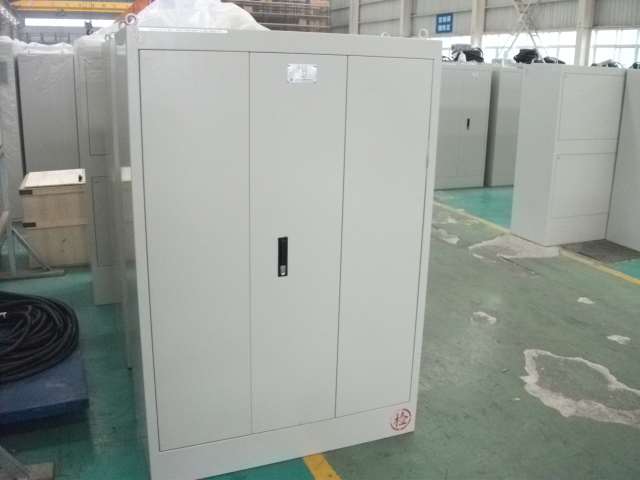

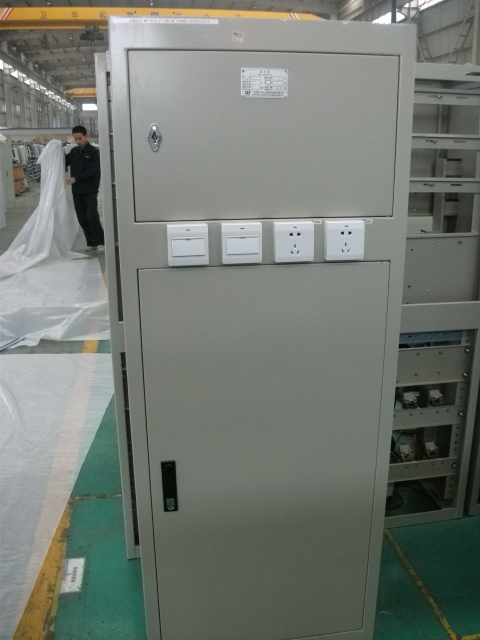

Electric Control Panel for crane
Electrical Control Panel for crane can be product according to customers’ specially requirement. Our Panel strictly follows international universal standard, thus it can replace customers’ same panel.
